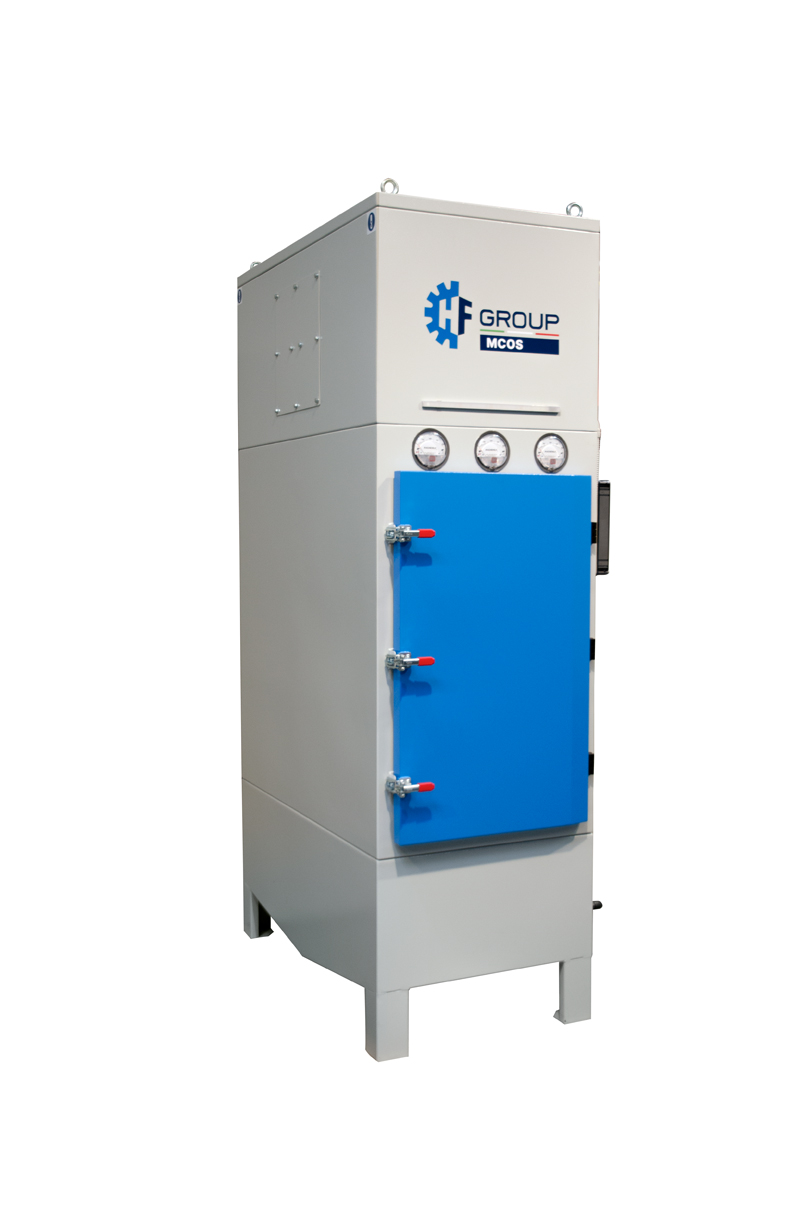

Oil mist coalescence filter
MCOS
MCOS is a filtration system designed to separate oil and smoke particles from the air in particularly heavy duty work conditions, using the principle of coalescence. Applications for this type of filtration are heavy duty mechanical processing.
The air flow passes through the multilayer fibreglass filter element at low speed, where the coalescence process takes place. By crossing the increasingly thick layers of filtering material, the microparticles of the pollutants are agglomerated, reaching macroscopic dimensions.
What is the coalescence principle? Coalescence is the physical phenomenon through which liquid droplets, gas bubbles or solid particles come together to form larger entities.
Unlike traditional static filters, the coalescence filter does not work exclusively based on clogging, as the particles reach a weight that causes them to fall by gravity into the collecting tank, significantly increasing the useful life of the filter. Once the filter element has been crossed, the air flow goes back to the next element at a low enough speed to avoid dragging the finest particles. To ensure a higher level of purification it is possible to install an additional absolute filtration stage (FFA),with an efficiency rating of 99.99%.
The collected oil particles are expelled through a drain pipe positioned on the back of the filter.
APPLICATIONS
- Sharpening
- Boring
- Aluminum and zinc
- Hazardous environments
- Agricultural operations
- Broaching
- VOC
- Drying
- Threading and tapping
- Bag filter
- Square filter
- Filter
- Gaseous flows
- Drilling
- Milling
- Dry fumes and dust
- Food processing
- Electroplating
- CNC machining
- Lathe machining
- Various machining processes
- Sanding
- Metal cleaning machines
- Oily mists
- Spraying
- Shot peening
- Dust with sparks
- Presence of oil
- Die casting
- Metal cleaning
- Cleaning
- Grinding and superfinishing
- Metal salting
- Grinding, sanding, edging
- Storage
- Saw cutting
- Laser cutting
- Cutting
- Pneumatic conveying, mixing, weighing of powdery solid materials
- Heat treatments
- Painting
- Glassware
- Dry machining on machine tools
- Marble Cutting
- Chemical processes
- Cement
- Pharmaceutical processing
- Carbon
- Plastics processing
- Welding
- Plasma cutting
- Epoxy coatings
- Grinding
- Wenting silos
- Sandblasting
- Deburring
- Pneumatic transport of powdered solid materials
- Cardiac System
- Respiratory System
- Combustion
- Dentition
- Volcanic Eruptions
- Milling-153
- Metal materials fusion
- Incineration plants
- Paper industry
- Processes with odorous emissions
- Processes with graphite
- Processes with combustible powders
- Woodworking
- Pickling lines
- Metal washing machines-139
- Small metal parts
- Leather
- Eye problems
- Passivation process
- Feed production
- Adhesive tape production
- Abrasive products production
- Superfinishing grinding
- Grinding
- Satin finishing
- Nervous System
- Waste disposal
- Colis-calamina leveling
- Waste storage
- Thermal cutting
- Marble cutting
- Surface finishing treatments
- Wastewater treatment
- Paints and solvents
- High efficiency:
- 99.99% for particles with dimensions greater than 1 µm
- 99% for particles with dimensions greater than 0.5 µm
- 95% for particles with dimensions greater than 0.2 µm
- Reduced management and maintenance costs
- Modular system:
- Standard versions with 1 to 20 filtering elements
- Standard versions from 1000m³/h to 20000 m³/h
- Easy installation
- Customised plant engineering solutions
- Reliability over time
Request the brochure
Fill out now our form below to receive the brochure, you will be contacted by one of our experts as soon as possible! Fields marked with an asterisk are mandatory!
Versions
A new version in the MCOS range. The small size of this new product allows the installation near to the machine.
The new MCOS Mini has been developed in two versions:
MCOS-Mini-G
To be installed on the ground
and is equipped with a bin for
the collection of oil.

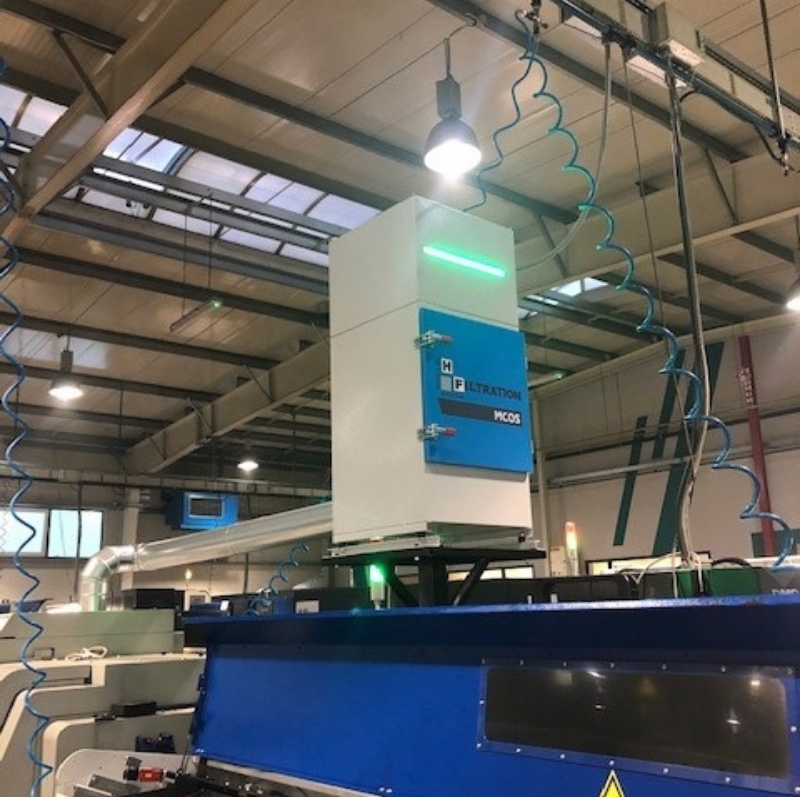

MCOS-Mini-R

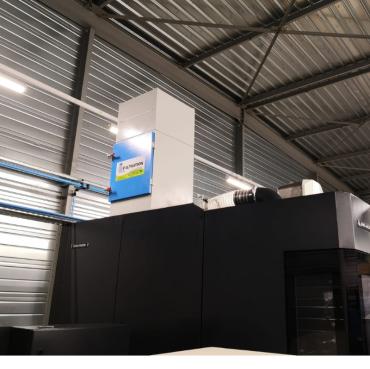

To be installed on top
of the machine tool.
The MCOS coalescence series includes filters with centrifugal electric fans (with EU motor with IE3 efficiency) designed and built to be installed inside the machine with the advantage of eliminating its noise and reducing the installation space.

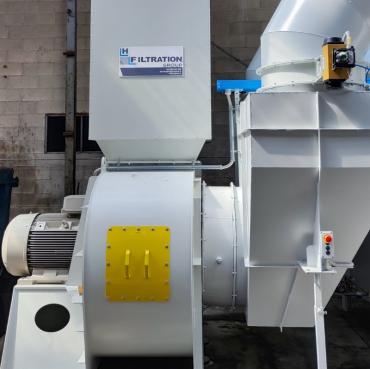

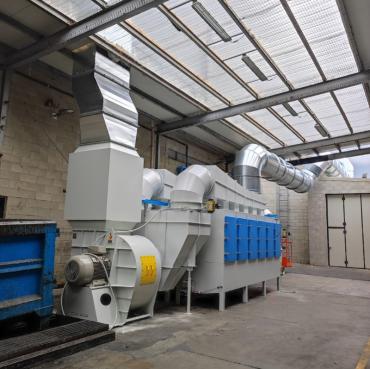

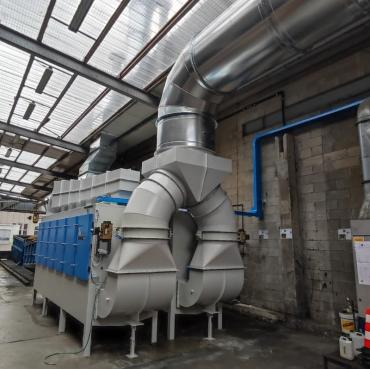

To allow installations with customised capacities and heads, the MCOS S series coalescence filters can be fitted with a fan installed on the ground.
