Dust and dry fumes

Hydrodynamic Filter
IDRODUST COMPACT™

hydrodynamic filter idrodust compact

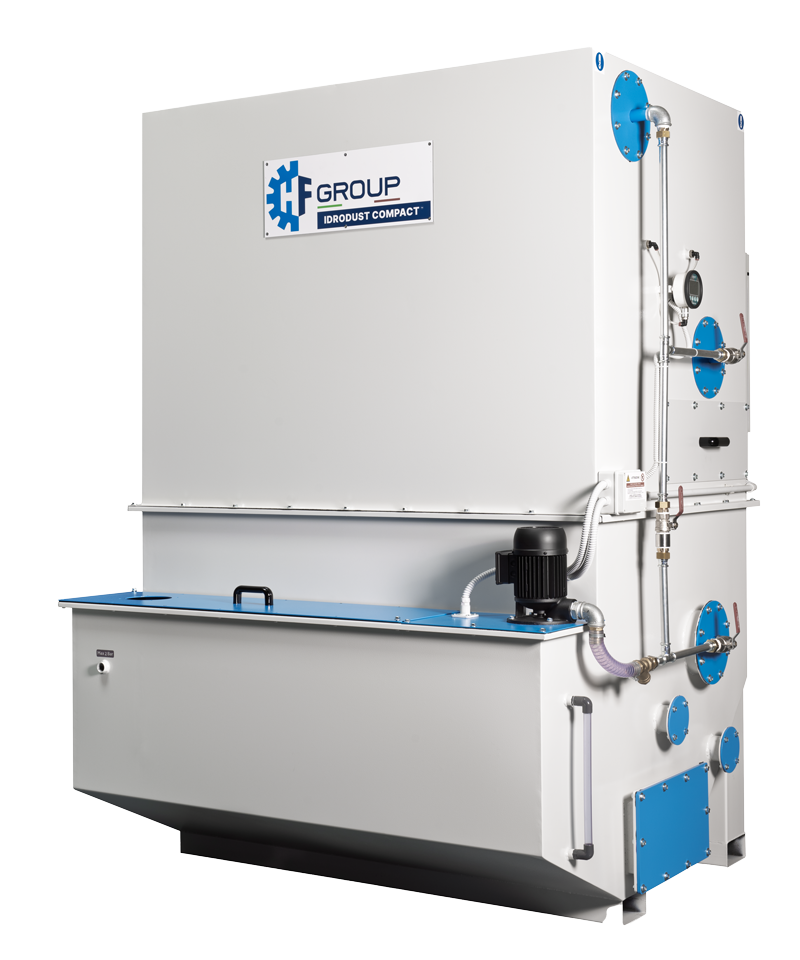

The Idrodust Compact® hydrodynamic filter is a hydrodynamic dust, vapour and gas suppressor that uses the effect of micromixing the air being treated with water.

The air to be treated enters the filter by passing through an expansion chamber which significantly slows down the flow which promotes the precipitation of coarse polluting particles; the air flow then passes through the venturi duct, dragging part of the water present in the filter. The centrifugation process, which humidifies the polluted air and retains the polluting particles, takes place in the venturi duct.

Before the clean air is ejected, it passes through a droplet separator, depositing the particles of water trapped in the air flow onto this separator.

It has no parts that are subject to wear or clogging, which helps reduce maintenance.

APPLICATIONS

  • Sharpening
  • Boring
  • Aluminum and zinc
  • Hazardous environments
  • Agricultural operations
  • Broaching
  • VOC
  • Drying
  • Threading and tapping
  • Bag filter
  • Square filter
  • Filter
  • Gaseous flows
  • Drilling
  • Milling
  • Dry fumes and dust
  • Food processing
  • Electroplating
  • CNC machining
  • Lathe machining
  • Various machining processes
  • Sanding
  • Metal cleaning machines
  • Oily mists
  • Spraying
  • Shot peening
  • Dust with sparks
  • Presence of oil
  • Die casting
  • Metal cleaning
  • Cleaning
  • Grinding and superfinishing
  • Metal salting
  • Grinding, sanding, edging
  • Storage
  • Saw cutting
  • Laser cutting
  • Cutting
  • Pneumatic conveying, mixing, weighing of powdery solid materials
  • Heat treatments
  • Painting
  • Glassware
  • Dry machining on machine tools
  • Marble Cutting
  • Chemical processes
  • Cement
  • Pharmaceutical processing
  • Carbon
  • Plastics processing
  • Welding
  • Plasma cutting
  • Epoxy coatings
  • Grinding
  • Wenting silos
  • Sandblasting
  • Deburring
  • Pneumatic transport of powdered solid materials
  • Cardiac System
  • Respiratory System
  • Combustion
  • Dentition
  • Volcanic Eruptions
  • Milling-153
  • Metal materials fusion
  • Incineration plants
  • Paper industry
  • Processes with odorous emissions
  • Processes with graphite
  • Processes with combustible powders
  • Woodworking
  • Pickling lines
  • Metal washing machines-139
  • Small metal parts
  • Leather
  • Eye problems
  • Passivation process
  • Feed production
  • Adhesive tape production
  • Abrasive products production
  • Superfinishing grinding
  • Grinding
  • Satin finishing
  • Nervous System
  • Waste disposal
  • Colis-calamina leveling
  • Waste storage
  • Thermal cutting
  • Marble cutting
  • Surface finishing treatments
  • Wastewater treatment
  • Paints and solvents
Advantages
  • Efficiency: Emissions ≤ 10 mg/Nm³*
    *Other emissions obtainable on request
  • Extremely contained installation, use and maintenance costs
  • Multiple filter inspection access points
  • No risk of fire thanks to the presence of water

Request the brochure

Fill out now our form below to receive the brochure, you will be contacted by one of our experts as soon as possible! Fields marked with an asterisk are mandatory!

Click here to expand
Click here to compress

Versions

hydrodynamic filter idrodust compact

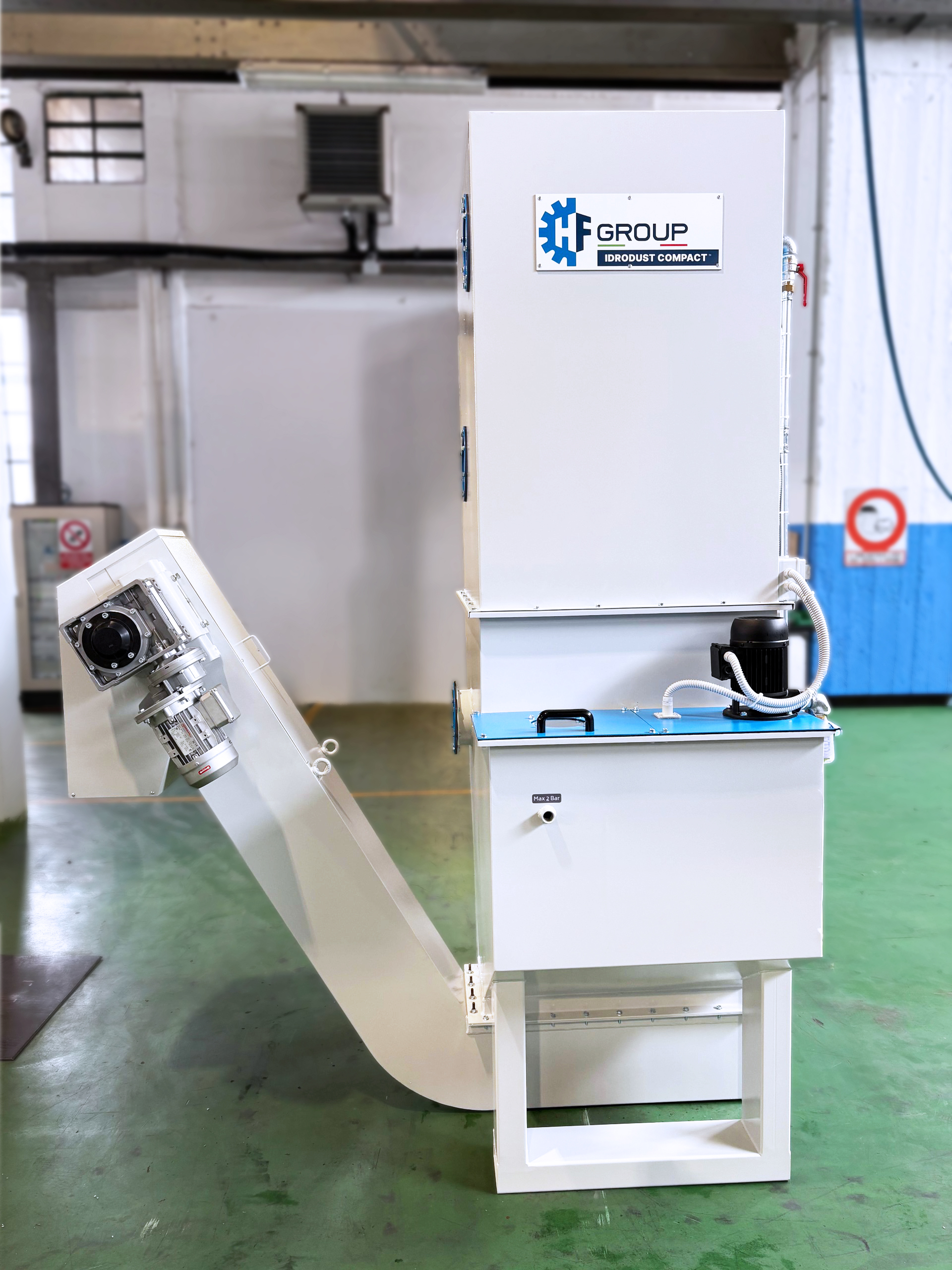

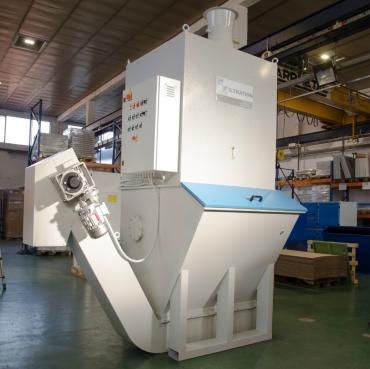

IDRODUST COMPACT® hydrodynamic filter with Sludge dredge

The Idrodust Compact® hydrodynamic filter with Sludge dredge operation, similar to the standard version, differs in how sludge is automatically drained from the sedimentation tank. Scrapers collect the dust/sludge that settles at the bottom of the tank and it is transported mechanically to the outlet for disposal. The Sludge dredge prevents having to stop the machine to remove sludge, considerably reducing general management costs.

hydrodynamic filter idrodust compact

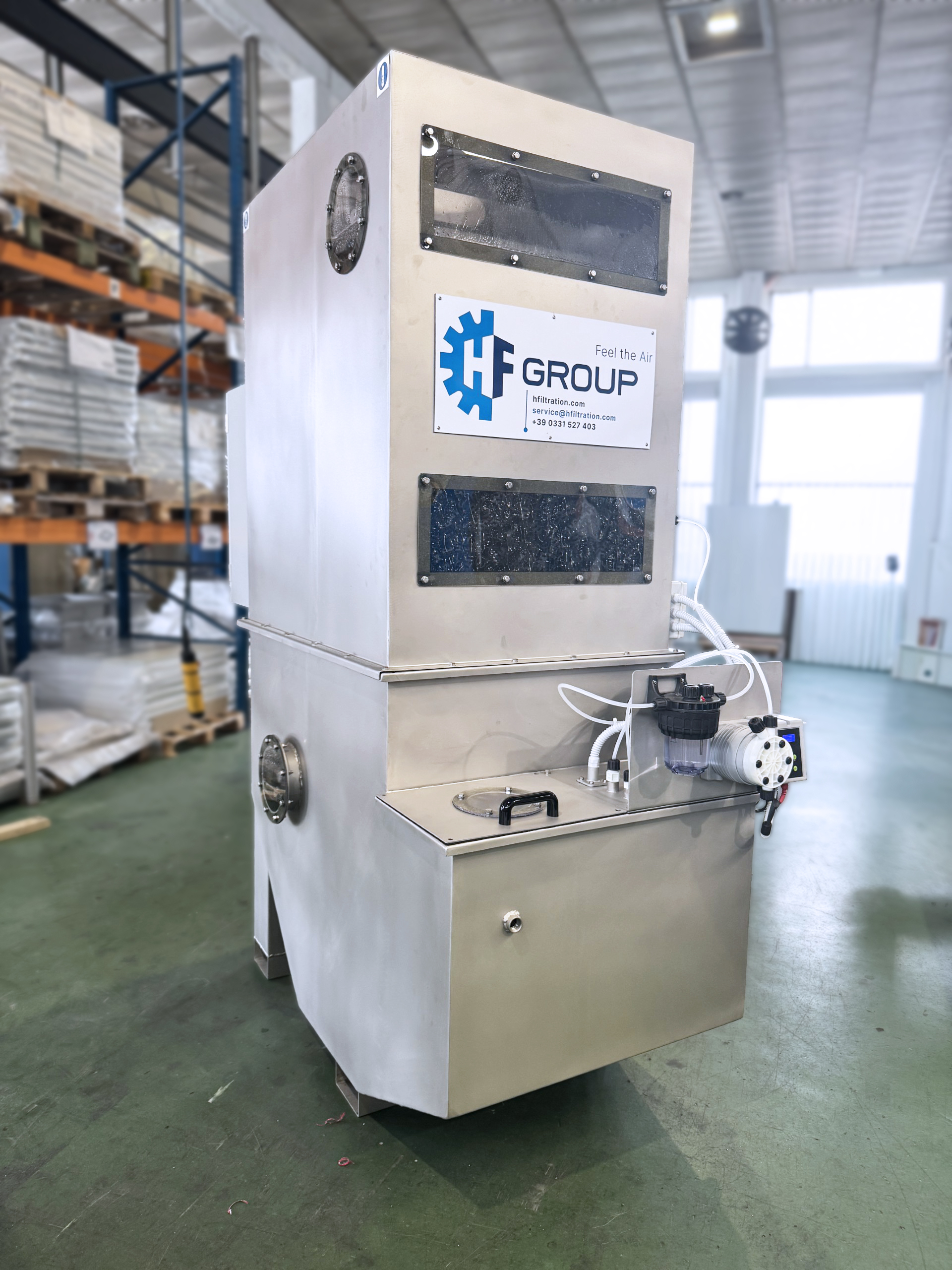

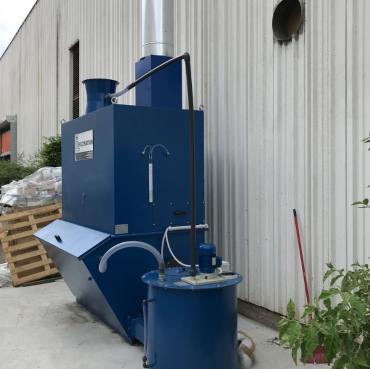

IDRODUST COMPACT® hydrodynamic filter with Venturi Pump

The Venturi Pump system consists of a 250 litre water tank connected to the IDRODUST COMPACT® filter tank. The tank is equipped with a pump that pushes the fluid into a rigid PVC pipe up to the nozzles inserted in the venturi pipe. The flow of air being treated is thus washed before entering the filter. A level switch to protect the pump is installed on the tank, which switches off the motor if the level of water in the tank drops below a safety threshold.
