Dust and dry fumes

Cartridge filter
PULSATRON COMPACT™

cartridge filter pulsatron compact

The Pulsatron Compact® range includes a wide variety of compressed air self-cleaning high efficiency cartridge filters that can solve all dry filtration problems.

Polluted air goes into the filter through a pre-chamber that helps separate the coarse particles; the flow then goes through the cartridges, depositing the contaminant outside of them, while clean air is delivered through the filter head.


An automatic cartridge cleaningsystem maintains the suction capacity, washing them by blowing compressed air that directs the dustinto the specific collection drawer or bin.

The limited dimensions and minimal noise of the filter mean it can be installed even inside departments near the sourceofpollution.

APPLICATIONS

  • Sharpening
  • Boring
  • Aluminum and zinc
  • Hazardous environments
  • Agricultural operations
  • Broaching
  • VOC
  • Drying
  • Threading and tapping
  • Bag filter
  • Square filter
  • Filter
  • Gaseous flows
  • Drilling
  • Milling
  • Dry fumes and dust
  • Food processing
  • Electroplating
  • CNC machining
  • Lathe machining
  • Various machining processes
  • Sanding
  • Metal cleaning machines
  • Oily mists
  • Spraying
  • Shot peening
  • Dust with sparks
  • Presence of oil
  • Die casting
  • Metal cleaning
  • Cleaning
  • Grinding and superfinishing
  • Metal salting
  • Grinding, sanding, edging
  • Storage
  • Saw cutting
  • Laser cutting
  • Cutting
  • Pneumatic conveying, mixing, weighing of powdery solid materials
  • Heat treatments
  • Painting
  • Glassware
  • Dry machining on machine tools
  • Marble Cutting
  • Chemical processes
  • Cement
  • Pharmaceutical processing
  • Carbon
  • Plastics processing
  • Welding
  • Plasma cutting
  • Epoxy coatings
  • Grinding
  • Wenting silos
  • Sandblasting
  • Deburring
  • Pneumatic transport of powdered solid materials
  • Cardiac System
  • Respiratory System
  • Combustion
  • Dentition
  • Volcanic Eruptions
  • Milling-153
  • Metal materials fusion
  • Incineration plants
  • Paper industry
  • Processes with odorous emissions
  • Processes with graphite
  • Processes with combustible powders
  • Woodworking
  • Pickling lines
  • Metal washing machines-139
  • Small metal parts
  • Leather
  • Eye problems
  • Passivation process
  • Feed production
  • Adhesive tape production
  • Abrasive products production
  • Superfinishing grinding
  • Grinding
  • Satin finishing
  • Nervous System
  • Waste disposal
  • Colis-calamina leveling
  • Waste storage
  • Thermal cutting
  • Marble cutting
  • Surface finishing treatments
  • Wastewater treatment
  • Paints and solvents
Advantages
  • Efficiency: Efficiency: Emissions ≤ 5 mg/Nm3*
  • *Other emissions obtainable on request
  • Low Noise Level 68/75 dBA depending on the model
  • Limited maintenance thanks to an efficient counter-washing Pulse-jet cleaning system
  • Integrated electric fans from top brands and from EU with efficiency class IE3.
  • Modular System:
    Standard versions from 2 to 24 cartridges
    Standard versions from 1,000 to 48,000 m3/h
  • Customised plant engineering solutions

Request the brochure

Fill out now our form below to receive the brochure, you will be contacted by one of our experts as soon as possible! Fields marked with an asterisk are mandatory!

Click here to expand
Click here to compress

Versions

cartridge filter pulsatron compact

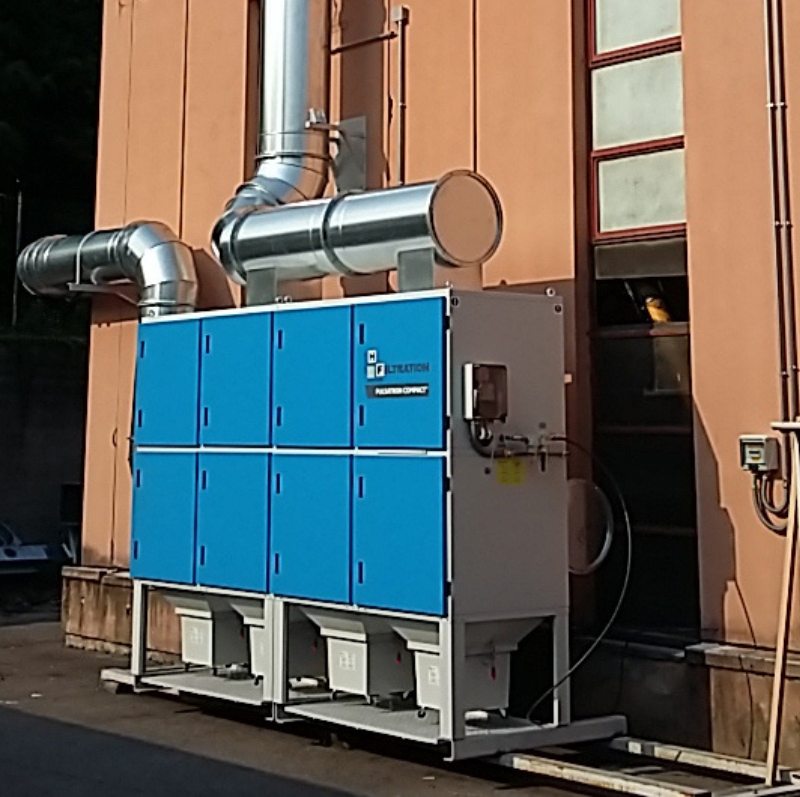

Cartridge filter with integrated fan

The Pulsatron Compact® cartridge filters in versions TV, HV, NV and SV are fitted with centrifugal electric fans (with EU motor with IE3 efficiency) designed to be installed inside the machine with the advantage of eliminating its noise and reducing the installation space.

cartridge filter pulsatron compact

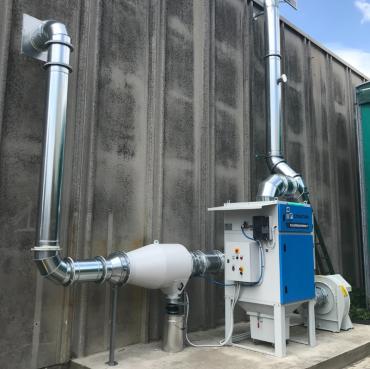

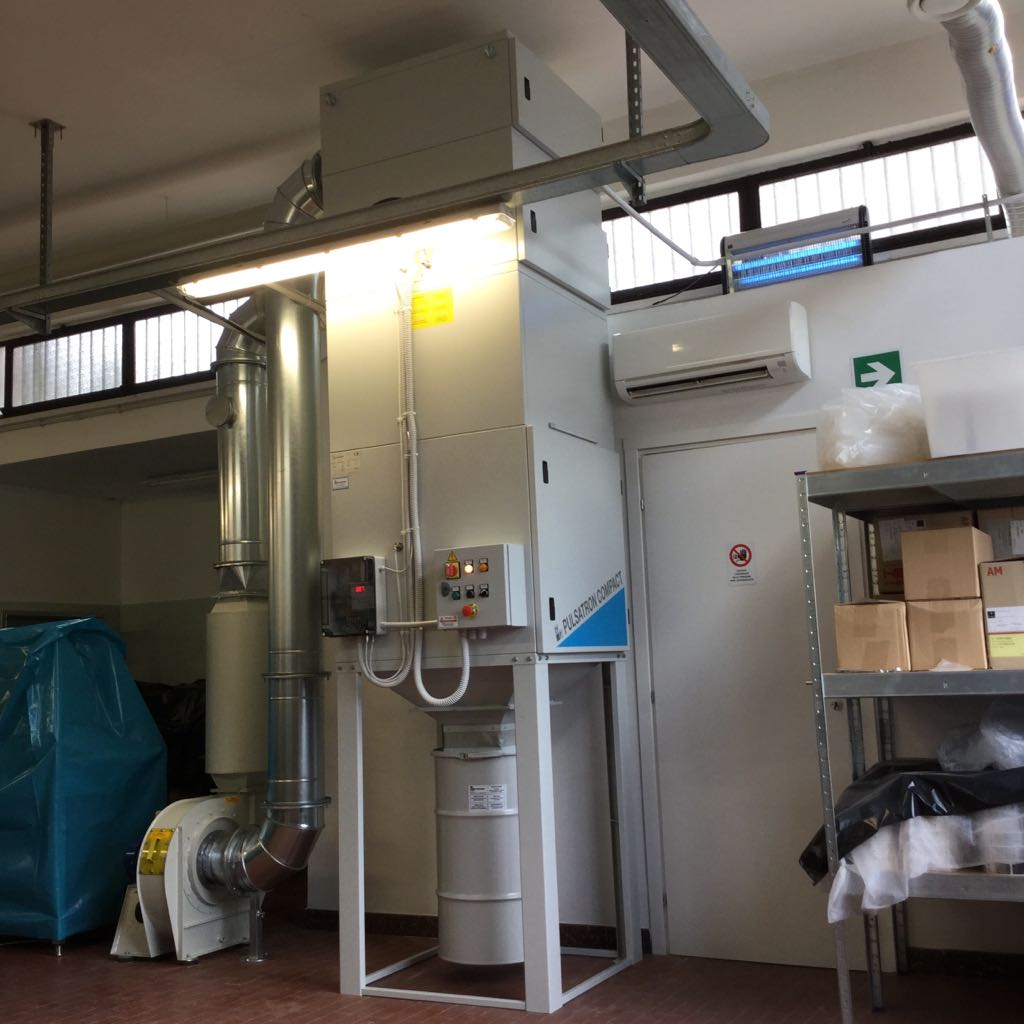

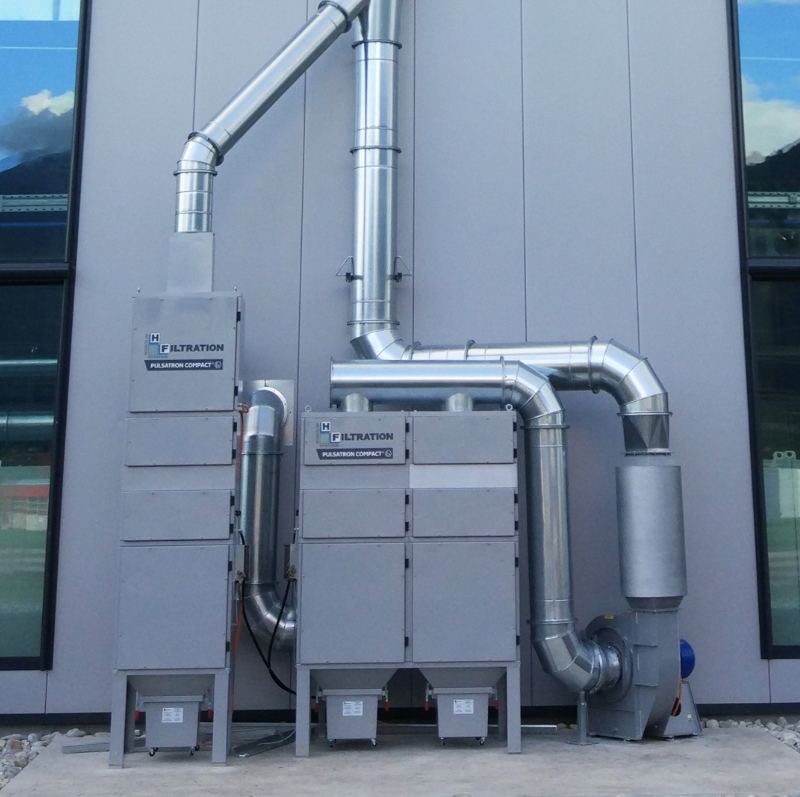

Cartridge filter with ground fan

To allow installations with customised capacities and heads, the Pulsatron Compact® cartridge filter
models TS, HS and SS can be fitted with a fan installed on the ground.

cartridge filter pulsatron compact
XL series cartridge filter

To increase the installed filtering surface, Pulsatron Compact® XL Series cartridge filters have been designed for applications with large air flows. In fact, XL cartridges from Ø 325 mm and 120 mm in height are able to filter 20m2 each (and 40m2 each only with the TVXQ model).
