Dust and dry fumes

Cartridge filter
HJL CART

cartridge filter hjl cart

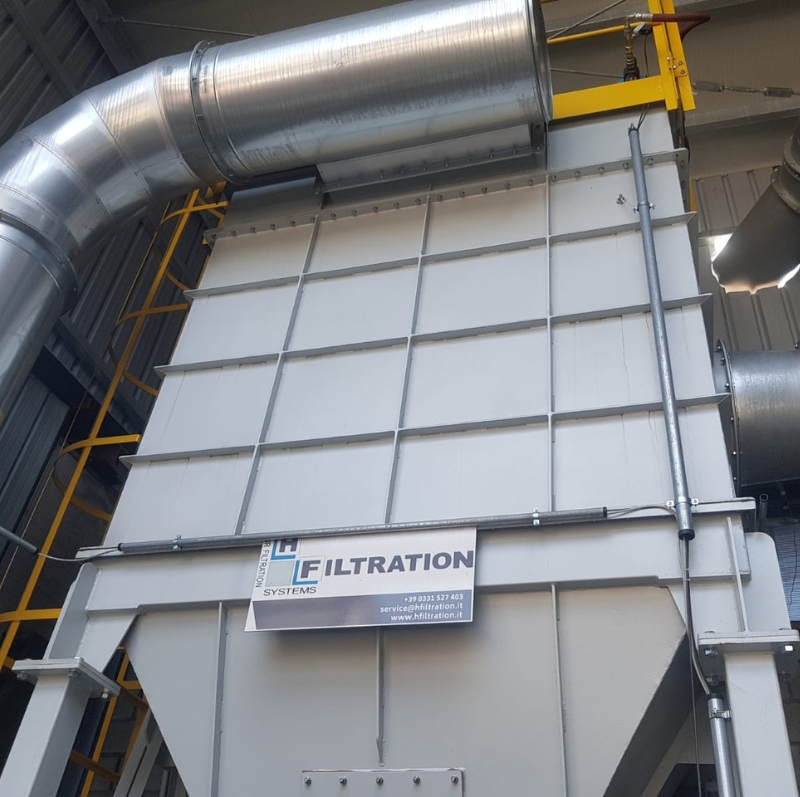

HJL CART Cartridge filters are fully customisable and designed for each specific project. They are built with S275JR steel of a thickness suitable to operate with medium-high dust loads, for outdoor installation and continuous operation.

The filtering cartridges with Ø125mm, available in lengths between 1,500 mm and 2,000 mm are equipped with SEEGER fastening system for quick maintenance. The fibre used for the cartridge is chosen based on the application. The cartridge can be removed from the walk-on filter roof.

HJL CART cartridge filters are equipped with a counter-current Pulse-Jet compressed air cleaning system. This is mainly composed of a compressed air tank, PED certified according to the 2014/68/EU standard, equipped with pre-wired “Full Immersion” membrane valve with BUS management system and electronic control unit installed on the filter for automatic cleaning based on when the cartridges are clogged.

To optimise cleaning system efficiency, Venturi nozzles can be installed on each cartridge. The cartridge filter dust discharge system is built with a collector auger at the bottom of the hopper and sealed rotary feeder for unloading in Big-Bags

APPLICATIONS

  • Sharpening
  • Boring
  • Aluminum and zinc
  • Hazardous environments
  • Agricultural operations
  • Broaching
  • VOC
  • Drying
  • Threading and tapping
  • Bag filter
  • Square filter
  • Filter
  • Gaseous flows
  • Drilling
  • Milling
  • Dry fumes and dust
  • Food processing
  • Electroplating
  • CNC machining
  • Lathe machining
  • Various machining processes
  • Sanding
  • Metal cleaning machines
  • Oily mists
  • Spraying
  • Shot peening
  • Dust with sparks
  • Presence of oil
  • Die casting
  • Metal cleaning
  • Cleaning
  • Grinding and superfinishing
  • Metal salting
  • Grinding, sanding, edging
  • Storage
  • Saw cutting
  • Laser cutting
  • Cutting
  • Pneumatic conveying, mixing, weighing of powdery solid materials
  • Heat treatments
  • Painting
  • Glassware
  • Dry machining on machine tools
  • Marble Cutting
  • Chemical processes
  • Cement
  • Pharmaceutical processing
  • Carbon
  • Plastics processing
  • Welding
  • Plasma cutting
  • Epoxy coatings
  • Grinding
  • Wenting silos
  • Sandblasting
  • Deburring
  • Pneumatic transport of powdered solid materials
  • Cardiac System
  • Respiratory System
  • Combustion
  • Dentition
  • Volcanic Eruptions
  • Milling-153
  • Metal materials fusion
  • Incineration plants
  • Paper industry
  • Processes with odorous emissions
  • Processes with graphite
  • Processes with combustible powders
  • Woodworking
  • Pickling lines
  • Metal washing machines-139
  • Small metal parts
  • Leather
  • Eye problems
  • Passivation process
  • Feed production
  • Adhesive tape production
  • Abrasive products production
  • Superfinishing grinding
  • Grinding
  • Satin finishing
  • Nervous System
  • Waste disposal
  • Colis-calamina leveling
  • Waste storage
  • Thermal cutting
  • Marble cutting
  • Surface finishing treatments
  • Wastewater treatment
  • Paints and solvents
Advantages
  • Efficiency: High filtrationefficiency and low emissions ≤ 5 mg/Nm³s*
    *Other emissions obtainable on request.
  • Long lasting filtering cartridges
  • Fast, simple filtering cartridge maintenance
  • Limited maintenance thanks to the efficient counter-washing Pulse-jet cleaning system.
  • Low pressure drops during operation with minimal compressed air or electricity consumption
  • Sturdy and fully sealed construction to assure safe and reliable operation over time.
  • Version ATEX II 3D available on request.
  • Safe and easy inspection

Request the brochure

Fill out now our form below to receive the brochure, you will be contacted by one of our experts as soon as possible! Fields marked with an asterisk are mandatory!

Click here to expand
Click here to compress

Versions

cartridge filter hjl cart
Filtro a cartucce HJL CART ATEX

The 2014/34/EU directive requires all products to be ATEXcertified if they are installed in atmospheres with a risk of explosion; HJL CART ATEX filtersare CE ex II 3D certified to be installed in ATEX 22 areas.
