Bag filter
HJL BAG

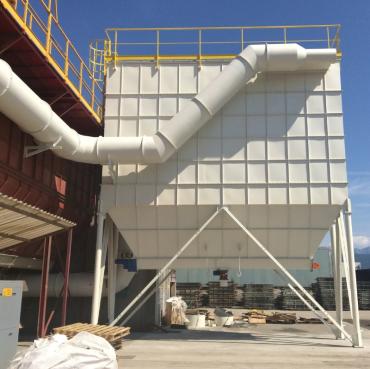

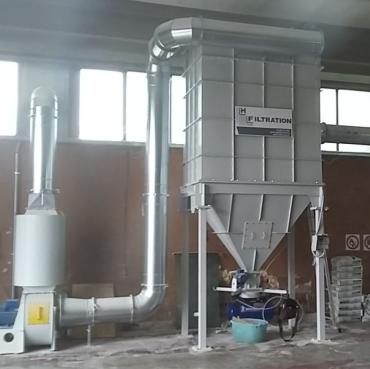

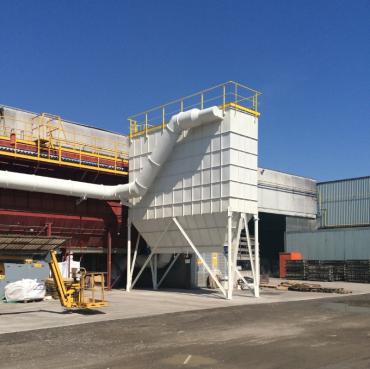

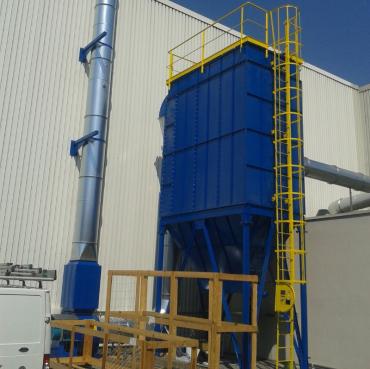

The HJL BAG series bag filters are fully customisable and tailored to the customer . They are systems made of S275JR steel in thicknesses suited for handling high dust loads for external installation and 24h/day operation.
The Ø125mm filtering bags, available in lengths varying from 2,500 mm to 4,500 mm, are equipped with reinforced bottom and SNAP-RING fastening system. The fibre of the bag is chosen based on the application. The bags are held in position by cut-proof, break-proof galvanised steel bag tensioning baskets. The bags and baskets can be removed from the walk-on filter roof.
HJL BAG series bag filters are equipped with a counter-current Pulse-Jet compressed air cleaning system. This is mainly composed of a compressed air tank, PED certified according to the 2014/68/EU standard, equipped with pre-wired “Full Immersion” membrane valve with BUS management system and electronic control unit installed on the filter for automatic cleaning based on when the bags are clogged. To optimise cleaning system efficiency, Venturi nozzles can be installed on each bag.
All the bags are connected to the earthing line to prevent static electricity from accumulating and to reduce the risk of sparking an explosion.
The bag filter dust discharge system is built with a collector auger at the bottom of the hopper and sealed rotary feeder for unloading in Big-Bags.
APPLICATIONS
- Sharpening
- Boring
- Aluminum and zinc
- Hazardous environments
- Agricultural operations
- Broaching
- VOC
- Drying
- Threading and tapping
- Bag filter
- Square filter
- Filter
- Gaseous flows
- Drilling
- Milling
- Dry fumes and dust
- Food processing
- Electroplating
- CNC machining
- Lathe machining
- Various machining processes
- Sanding
- Metal cleaning machines
- Oily mists
- Spraying
- Shot peening
- Dust with sparks
- Presence of oil
- Die casting
- Metal cleaning
- Cleaning
- Grinding and superfinishing
- Metal salting
- Grinding, sanding, edging
- Storage
- Saw cutting
- Laser cutting
- Cutting
- Pneumatic conveying, mixing, weighing of powdery solid materials
- Heat treatments
- Painting
- Glassware
- Dry machining on machine tools
- Marble Cutting
- Chemical processes
- Cement
- Pharmaceutical processing
- Carbon
- Plastics processing
- Welding
- Plasma cutting
- Epoxy coatings
- Grinding
- Wenting silos
- Sandblasting
- Deburring
- Pneumatic transport of powdered solid materials
- Cardiac System
- Respiratory System
- Combustion
- Dentition
- Volcanic Eruptions
- Milling-153
- Metal materials fusion
- Incineration plants
- Paper industry
- Processes with odorous emissions
- Processes with graphite
- Processes with combustible powders
- Woodworking
- Pickling lines
- Metal washing machines-139
- Small metal parts
- Leather
- Eye problems
- Passivation process
- Feed production
- Adhesive tape production
- Abrasive products production
- Superfinishing grinding
- Grinding
- Satin finishing
- Nervous System
- Waste disposal
- Colis-calamina leveling
- Waste storage
- Thermal cutting
- Marble cutting
- Surface finishing treatments
- Wastewater treatment
- Paints and solvents
- Emissions: ≤ 10 mg/Nm3*
- *Other emissions obtainable on request
- Limited maintenance thanks to the efficient counter-washing Pulse-jet cleaning system
- Low pressure drops during operation with minimal compressed air or electricity consumption.
- Long lasting filtering bags
- Sturdy and fully sealed construction to assure safe and reliable operation over time.
- Available for air flow rates with high dust concentrations.
- Customised plant engineering solutions
- Version ATEX II 3D available.
Request the brochure
Fill out now our form below to receive the brochure, you will be contacted by one of our experts as soon as possible! Fields marked with an asterisk are mandatory!
Versions
La direttiva 2014/34/UE impone la certificazione ATEX a tutti i prodotti se installati in luoghi a rischio di esplosione; i filtri HJL BAG ATEX sono certificati CE ex II 3D per poter essere installati in zona ATEX 22.
