Dust and dry fumes

Cartridge filter
PULSATRON COMPACT™ ATEX

cartridge filter pulsatron compact atex

Reliable and silent, Pulsatron Compact® ATEX is a high efficiency self-cleaning modular dust remover cartridge filter suitable for continuous cycle industrial use.

PC® ATEX series filters are designed for industrial applications where dry dust filtration through the principle of physical separation in qualified Ex II 3D environments is required.

The air being treated enters the filter, through a pre-chamber which helps separate the coarse pollutant particles. The air flow then passes through the filtering cartridges, depositing the contaminant outside them, while the clean air is discharged from the upper part of the filter. A cyclic device manages the cleaning of the filter elements with a Pulse-jet system.

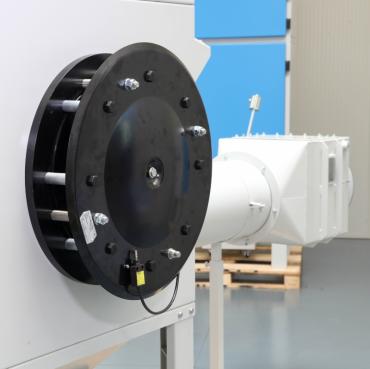

IThe Pulse-jet cleaning system consists in the counter-current injection of a high pressure air flow to remove the dust from the filtering elements without interrupting operation. In the event of an explosion, the vent panel mounted on the filter body mechanically collapses by venting the overpressure generated inside the filter upwards.

The design has been created in collaboration with ATEX standard experts and using cutting edge software (Cosmos, Fem and Solid Works3D) that made it possible to carry out simulations to offer Pulsatron Compact ATEX high resistance.

APPLICATIONS

  • Sharpening
  • Boring
  • Aluminum and zinc
  • Hazardous environments
  • Agricultural operations
  • Broaching
  • VOC
  • Drying
  • Threading and tapping
  • Bag filter
  • Square filter
  • Filter
  • Gaseous flows
  • Drilling
  • Milling
  • Dry fumes and dust
  • Food processing
  • Electroplating
  • CNC machining
  • Lathe machining
  • Various machining processes
  • Sanding
  • Metal cleaning machines
  • Oily mists
  • Spraying
  • Shot peening
  • Dust with sparks
  • Presence of oil
  • Die casting
  • Metal cleaning
  • Cleaning
  • Grinding and superfinishing
  • Metal salting
  • Grinding, sanding, edging
  • Storage
  • Saw cutting
  • Laser cutting
  • Cutting
  • Pneumatic conveying, mixing, weighing of powdery solid materials
  • Heat treatments
  • Painting
  • Glassware
  • Dry machining on machine tools
  • Marble Cutting
  • Chemical processes
  • Cement
  • Pharmaceutical processing
  • Carbon
  • Plastics processing
  • Welding
  • Plasma cutting
  • Epoxy coatings
  • Grinding
  • Wenting silos
  • Sandblasting
  • Deburring
  • Pneumatic transport of powdered solid materials
  • Cardiac System
  • Respiratory System
  • Combustion
  • Dentition
  • Volcanic Eruptions
  • Milling-153
  • Metal materials fusion
  • Incineration plants
  • Paper industry
  • Processes with odorous emissions
  • Processes with graphite
  • Processes with combustible powders
  • Woodworking
  • Pickling lines
  • Metal washing machines-139
  • Small metal parts
  • Leather
  • Eye problems
  • Passivation process
  • Feed production
  • Adhesive tape production
  • Abrasive products production
  • Superfinishing grinding
  • Grinding
  • Satin finishing
  • Nervous System
  • Waste disposal
  • Colis-calamina leveling
  • Waste storage
  • Thermal cutting
  • Marble cutting
  • Surface finishing treatments
  • Wastewater treatment
  • Paints and solvents
Advantages
  • Efficiency:Efficiency: Emissions ≤ 5 mg/Nm3*
    *Other emissions on request
  • Low Noise Level 68/75 dBA depending on the model
  • Limited maintenance thanks to an efficient counter-washing Pulse-jet cleaning system
  • Modular System:
    • Standard versions from 2 to 16 cartridges
    • Standard versions from 1,000 to 16,000m3/h
  • Customised plant engineering solutions

Request the brochure

Fill out now our form below to receive the brochure, you will be contacted by one of our experts as soon as possible! Fields marked with an asterisk are mandatory!

Click here to expand
Click here to compress

Versions

cartridge filter pulsatron compact atex

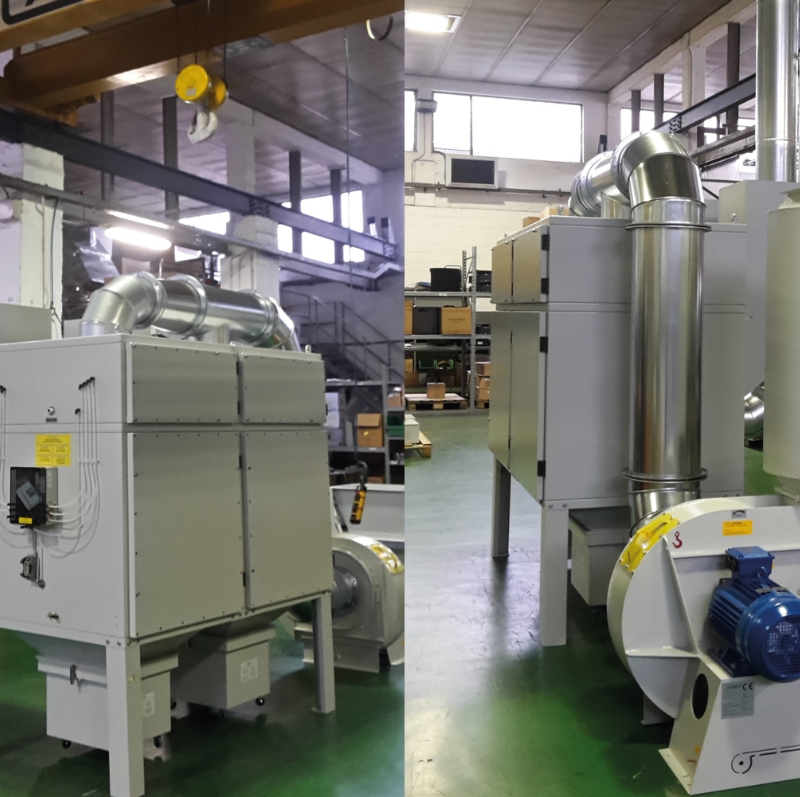

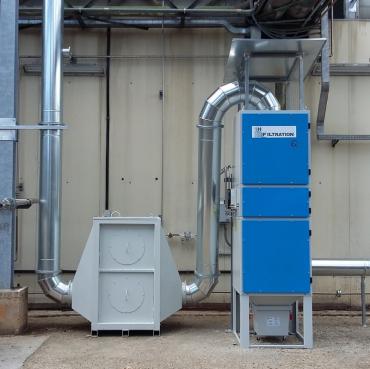

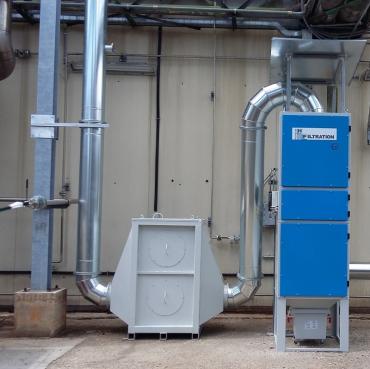

ATEX Cartridge filter with integrated fan

Pulsatron Compact® ATEX cartridge filters with antistatic polyester cartridges and electric fan (with EU iE3 efficiency motor) are complete with hopper, cyclical timer and vent panel, Pulse-jet counter-current cleaning system, dust collection bin. It can be equipped with a resettable bleed valve as an option.

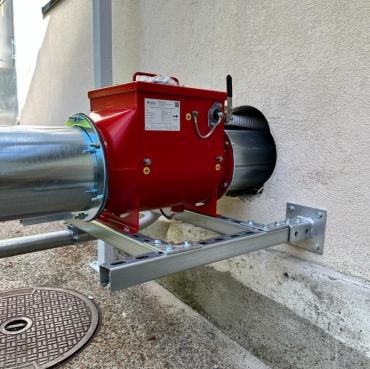

The filter, based on the type of dusts and on the process, can be equipped with an internal fire extinguishing system, managed by suitably positioned temperature probes and an inlet spark extinguishing system.

cartridge filter pulsatron compact atex

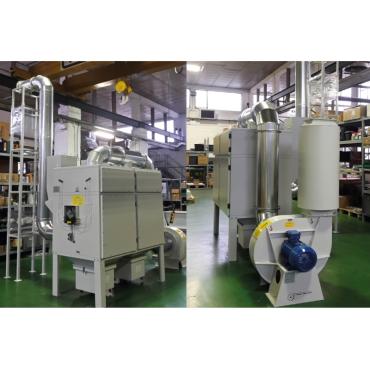

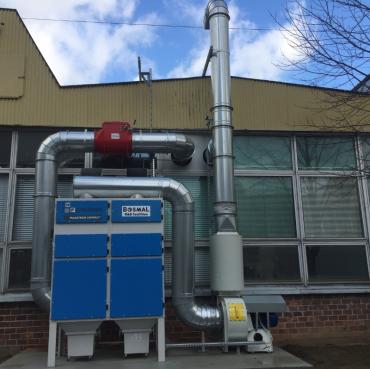

ATEX cartridge filter with ground fan

Pulsatron Compact® ATEX cartridge filters with antistatic polyester cartridges are complete with hopper, cyclic timer and vent panel, Pulse-jet counter-current cleaning system, dust collection bin; they can be equipped with a fan installed on the ground to obtain performance in terms of head and flow on request. It can be equipped with a resettable bleed valve as an option.
